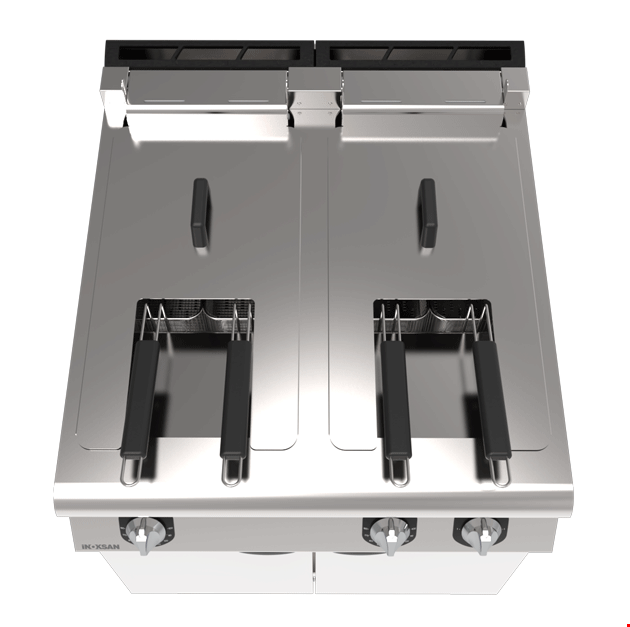

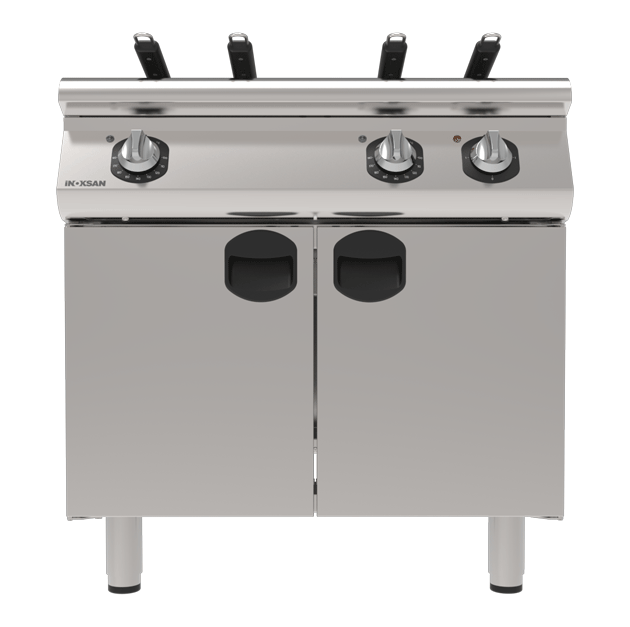

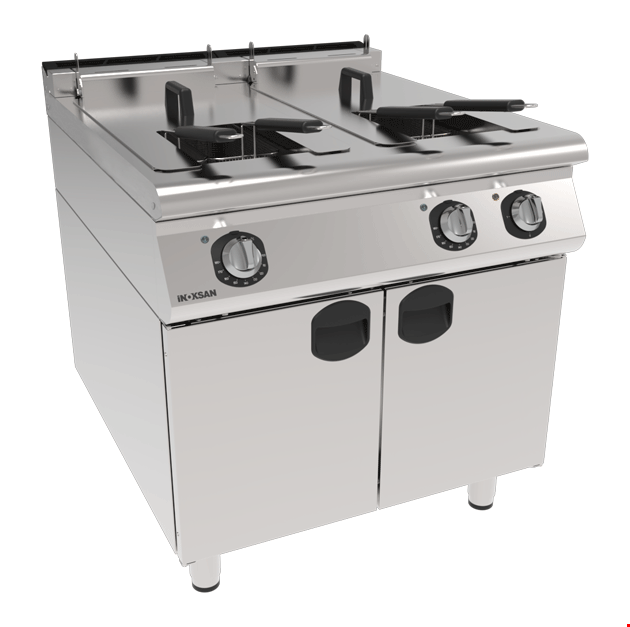

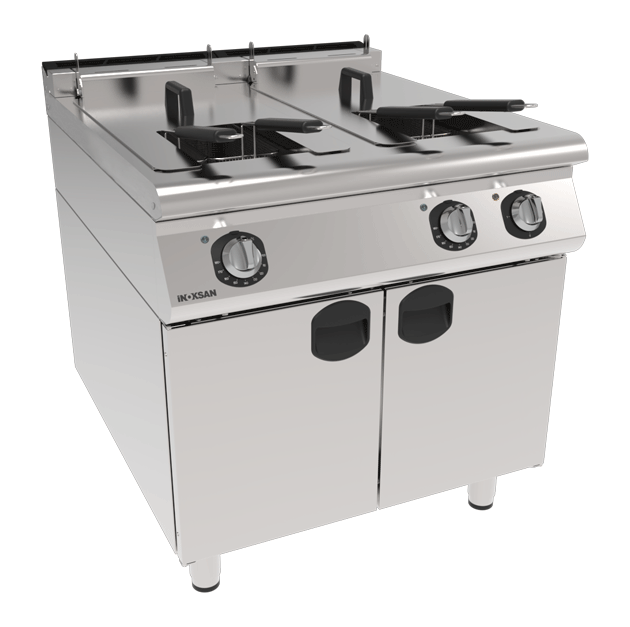

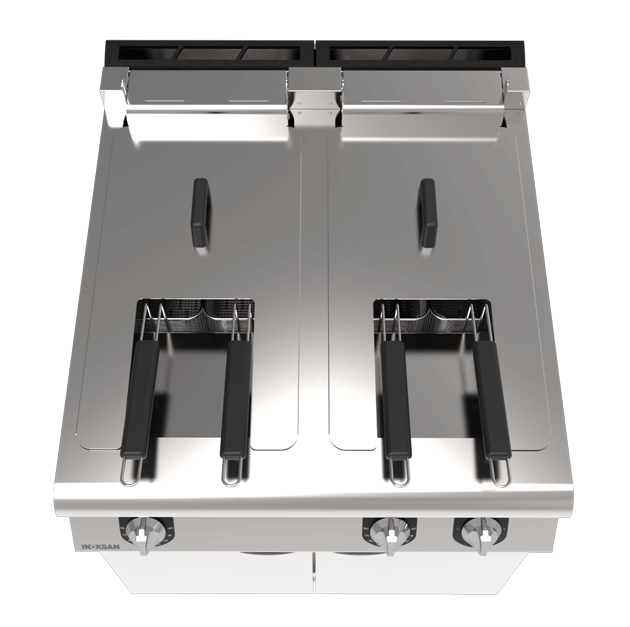

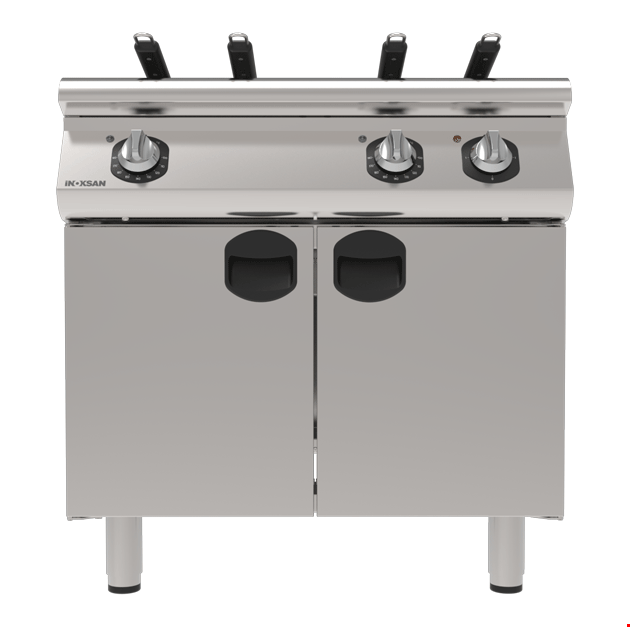

9DE 20-S STANDART SERIE FRYER Moduler Cooking

GENERAL SPECIFICATION

* Fryer

* Economy 900 series, 1moule, with cabinet

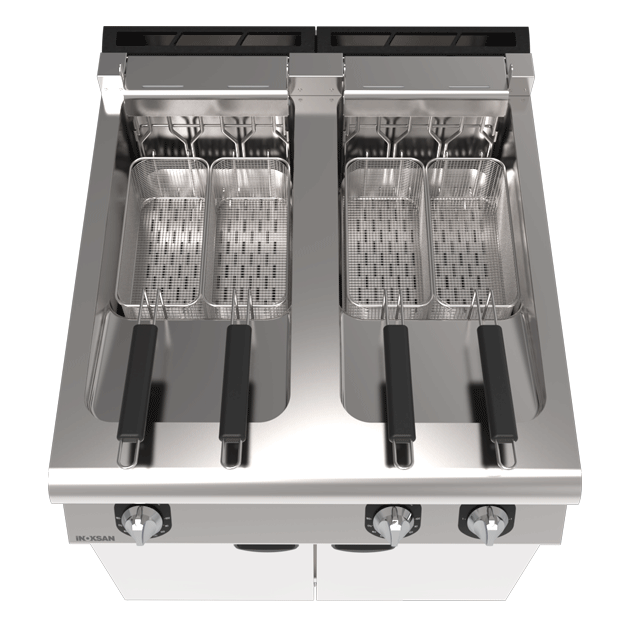

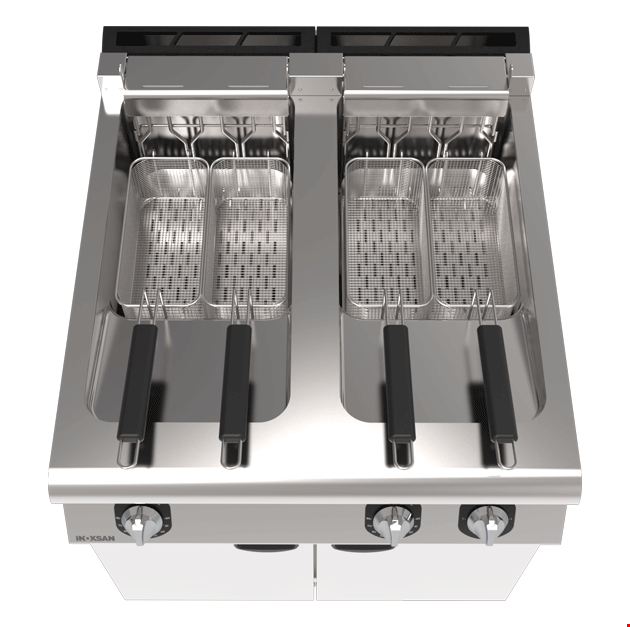

* 2 tank, 4 baskets

* Device trunk 18/8 Cr-Ni from stainless steel stone sheet,

* Baskets, are covered with wire suitable for frying and tin suitable for health conditions. The stem is protected against heating,

*Resistors, are removable for ease of cleaning and maintenance and are able to emit heat homogeneously,

* Main control switch to provide energy input to the device or cut off the input energy,

* Heat control between 100 - 190 C with thermostat,,

* All electrical control and control equipment complies with international standards,

* Limit safety thermostat to automatically cut off electrical input in case of any danger to the device,

* The ends of the thermostats that come into contact with oil are made of Cr-Ni,

* 3/4" ball valve at the bottom for draining the oil from the reservoir,

* Produced with a door cabinet as standard. The cabinet is made of stainless steel. Cabinet doors are with plastic handles,

* For multi-purpose use, a doorless cabinet can be placed under the device instead of a cabinet with a door or it can be mounted on a suitable carcass for middle group applications,

* Stainless adjustable tube legs, carrier sheets 2mm aluminized sheet.

TECHNICAL SPECIFICATION

Total Power	33	kW
Electrical Inlet	380/400	V
Oil Capacity	52	Lt.
Potato Capacity	40	Kg/h
Cable Cross Section	5x6	mm²
Box dimensions with Pallet	822x937x1006	GxDxY

Compare

General features
Width	80 cm
Depth	92 cm
Height	92 cm
Pallet box dimensions	822x937x1006 mm

Functional Features
Potato capacity	40 Kg/h
oil capacity	52 Lt

Technicial Specifications
Electric Input	380/400 V
Total power	36 kW
Max. Electric power	36 kW
Frequency	50-60 Hz
Cable cross section	5x10 mm²

Accessory
