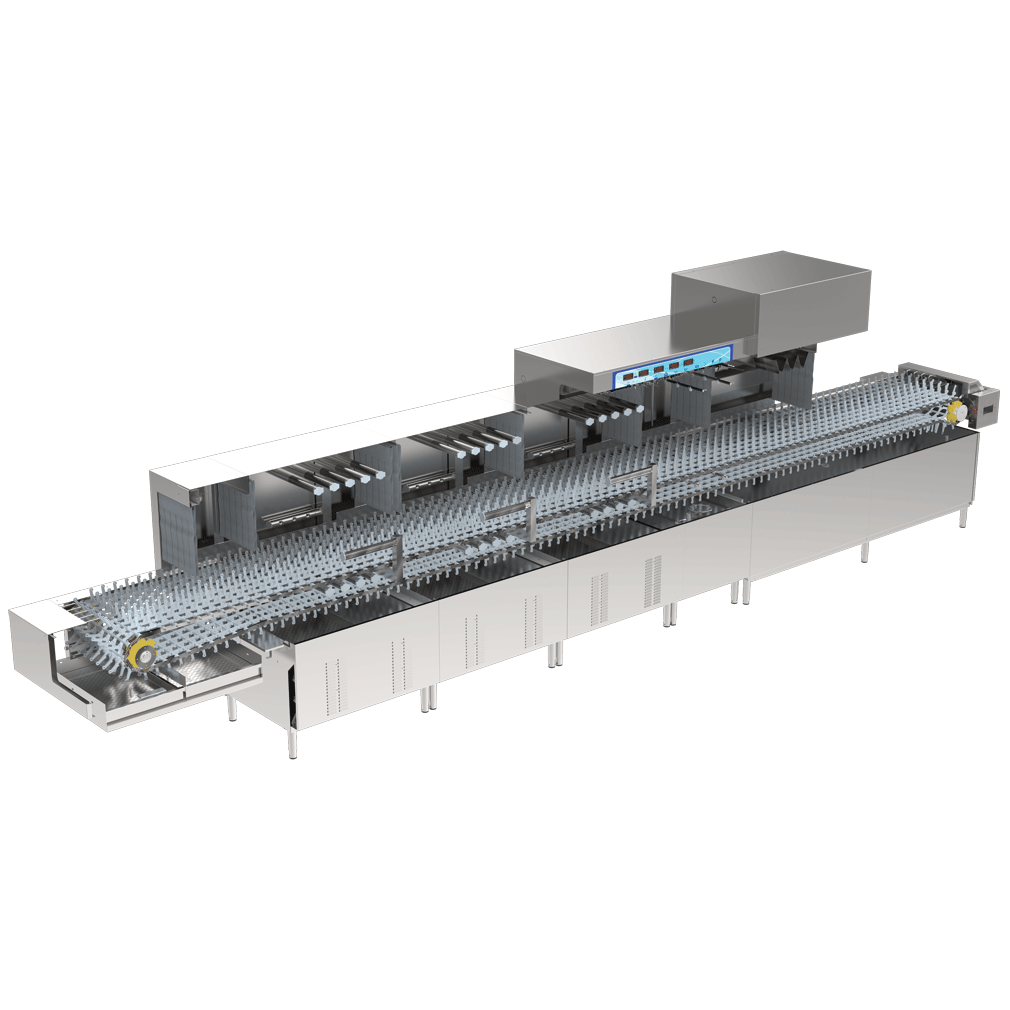

BYF 600L/R – Flight Type Dishwasher Conveyor Dishwashers

GENERAL FEATURES

* Electromechanically controlled,

* Pre-washing unit, forced, with 11 washing arms ,

* Duo washing module with 11 washing arms,

* Duo rinse system and internal rinsing pump ,

* Easy to dismount/mount washing/ rinsing arms and filters for cleaning purposes ,

* Possibility of washing kitchen utensils with a height of max. 400 mms ,

* Safety system to stop the operation of the dishwasher when the door is opened,

* Rack dimensions of 500x500 mms ,

* Temperature safety thermostats of boiler,

* Temperature safety thermostats of well,

* Parts in contact with water manufactured of AISI 304 Cr-Ni s/s sheet,

* 2 pcs cutlery rack ,

* Optional: Detergent pump, rinse aid pump , heat recovery system,

* Water level in the tank controlled pressostat automatically,

* Pallet type belt system for the transportation of the soiled utensils with a reducer of speed increase ,

* Digital thermometers displaying the water temperature ,

*Modular system (entry, prewashing, washing, duo rinse, drying, exit)

TECHNICAL SPECIFICATIONS

Water inlet	3/4	inches
Water pressure	2-4	Bar
Electric inlet	380-50	V-Hz.
Washing Motor Power	3	kW
Pre washing motor power	1,5	kW
Rinsing pump power	0.19	kW
Max. Electric power	56	kW
Frequency	50-60	Hz
Water consumption	480	Lts/h
Tank power	12	kW
Boiler power	24	kW
Reducer motor power	0,37	kW
Washing temperature	55	°C
Rinsing temperature	85	°C
Water inlet temperature	45-50	°C
Boiler Volume	30	lts
Main washing tank water volume	125	lts
Pre washing tank water volume	60	lts
Plate capacity	6000	pcs/h
Tray capacity	3000	pcs/h
Plate diameter Max.	360	mms
Max. utensil height	400	mms
Cable section	4x16	mm2
