Product Detail

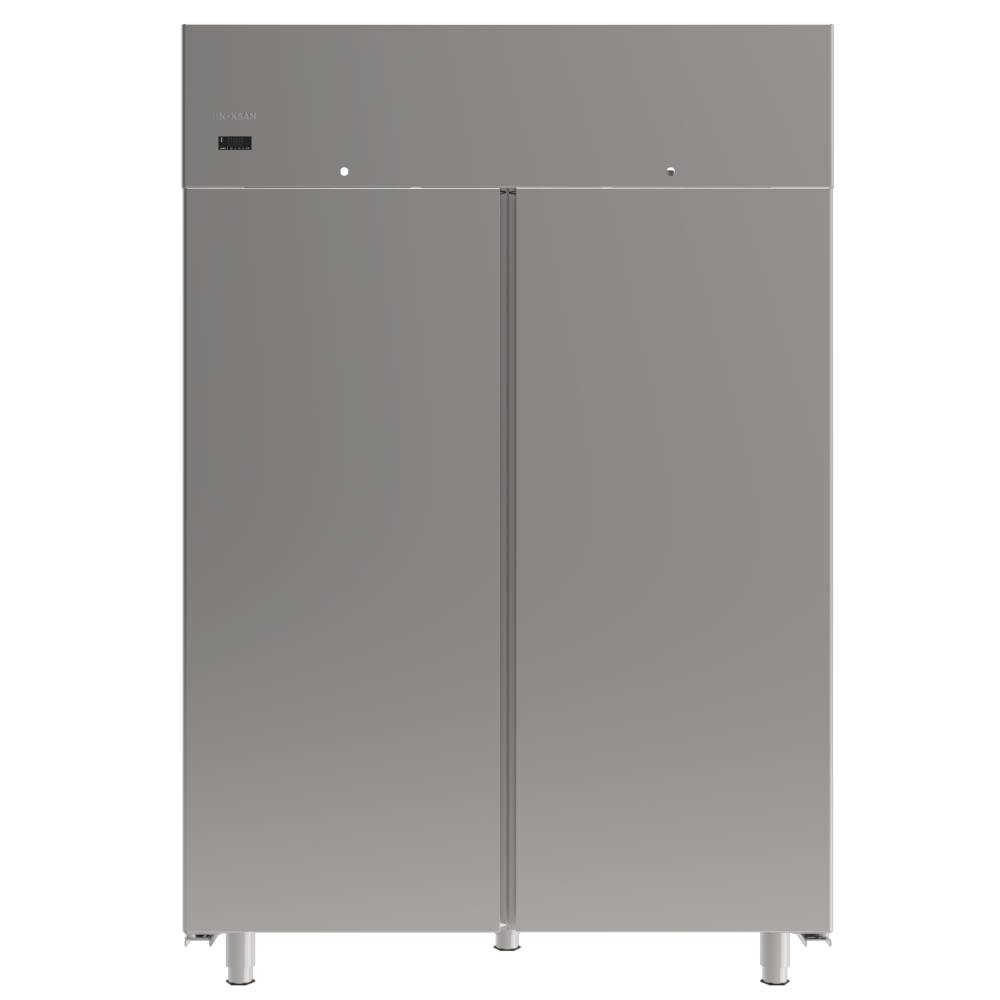

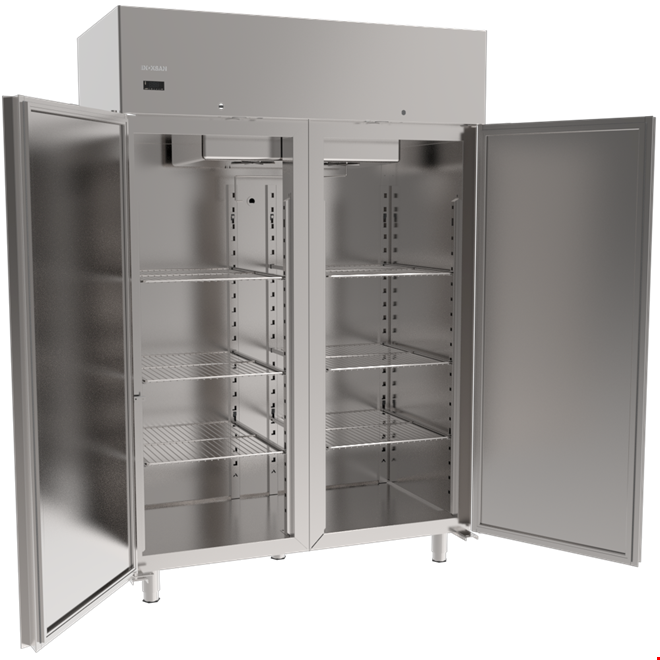

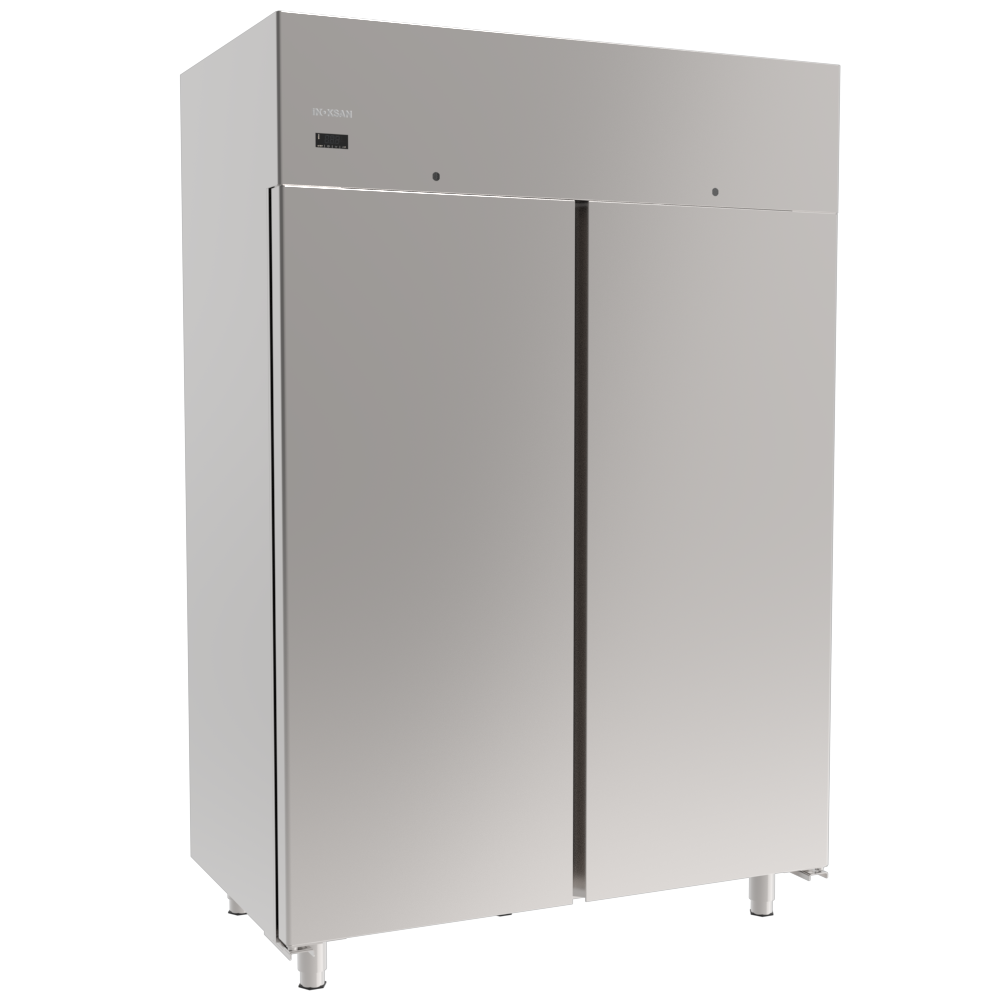

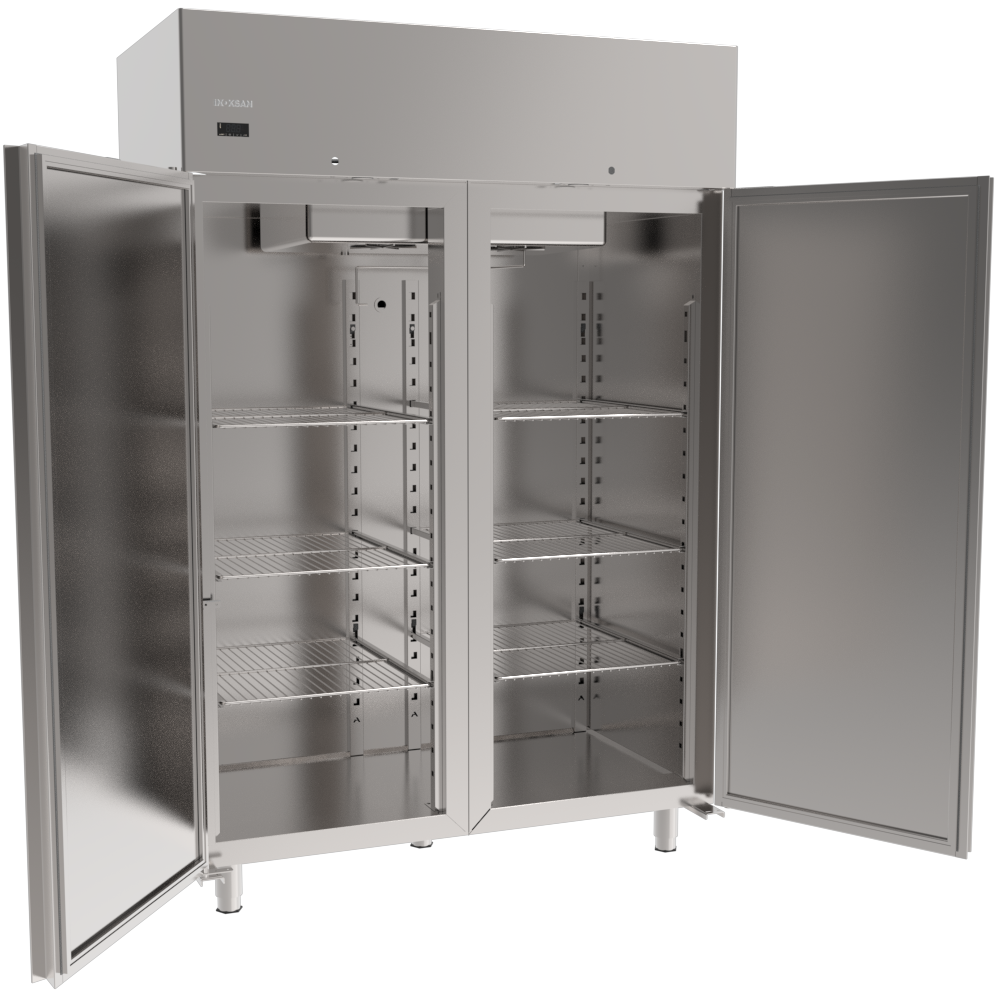

SDN140S UPRIGHT REFRIGERATOR WITH 2 DOORS Standard Cooling Equipments
General specifications:
* 60mm thickness (doors 55mm) body, HFCF Free polyurethane, 45kg/m'3 density
* -2 / +8 °C temperature
* With fan blown evaporator cooling system
* With fan cooler and grill ventilated engine block group
* Adjustable heightness and PVC coated shelf
* Automatic water evaporation during defrosting
* AISI 304 Cr-Ni stainless steel, rear sheets GALVANIZ
* 6 shelves
* Each door contains of 3 shelves
* Stainless adjustable feet
* With spring loaded 120-135 degree of fixed hinge system
* GN 2/1 compatibility
* Digital thermostat with double sensor
* Condenser cleaning alarm, high and low temperature alarm , HACCP compliance
* Magnetic and removable door seals
* When the door is opened, the evaporator will stop and lamb will operate.
Technical specifications:
|
Working ambient |
43 C |
Degree |
|
Cooling gas |
R134A |
|
|
Max energy |
0,95 |
kW |
|
Freq. |
50-60 |
Hz |
|
Electrical inlet |
230 |
V-Hz |
|
Weight |
175 |
Kg |
|
Cooling |
1200 |
Lt |
|
Wheeled foot |
optional |
|
|
Extra wire shelf |
optional |
|
|
Glass door |
optional |
|
|
Lamp |
optional |
|
|
Door lock |
optional |
|
