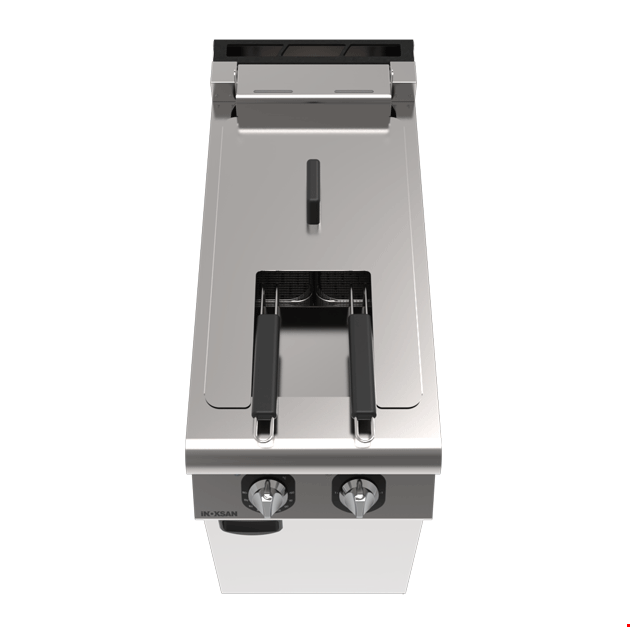

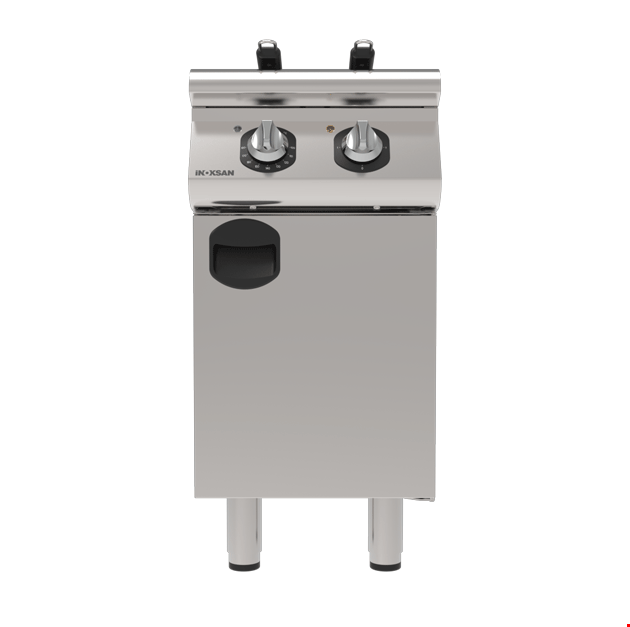

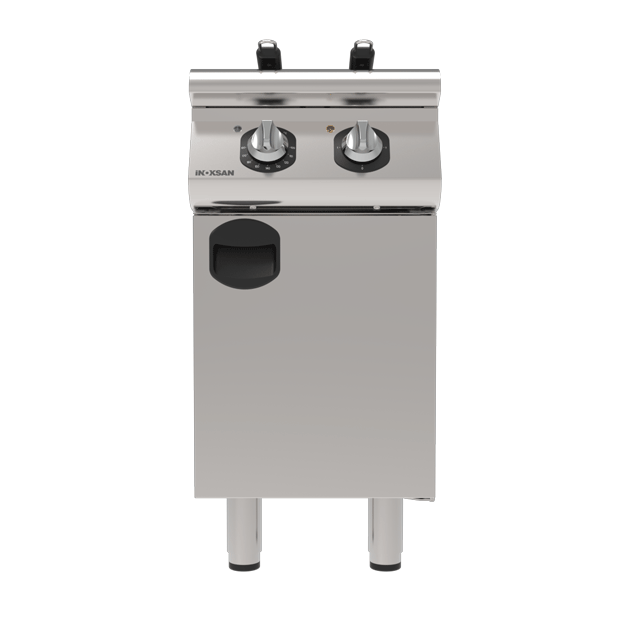

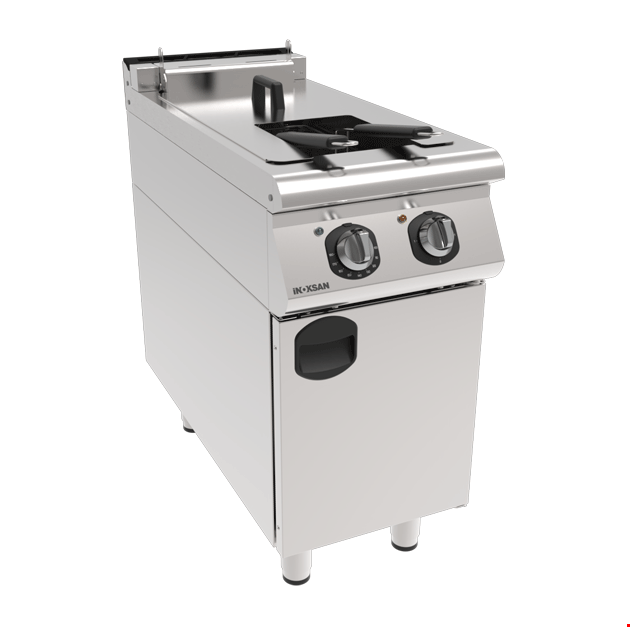

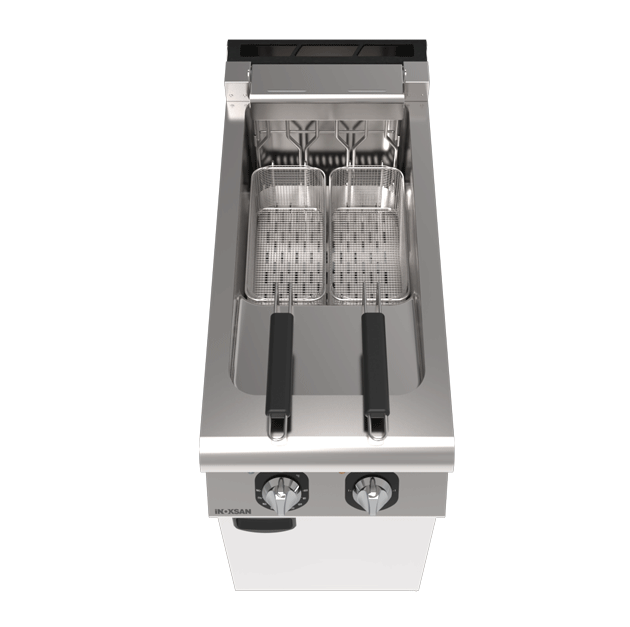

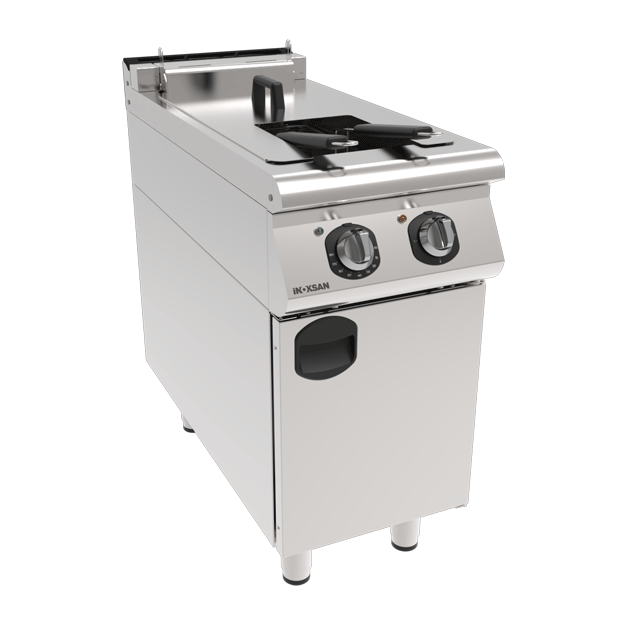

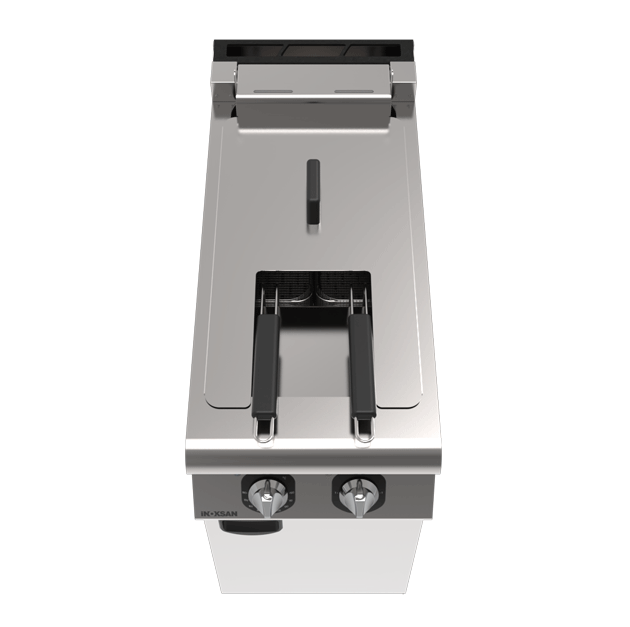

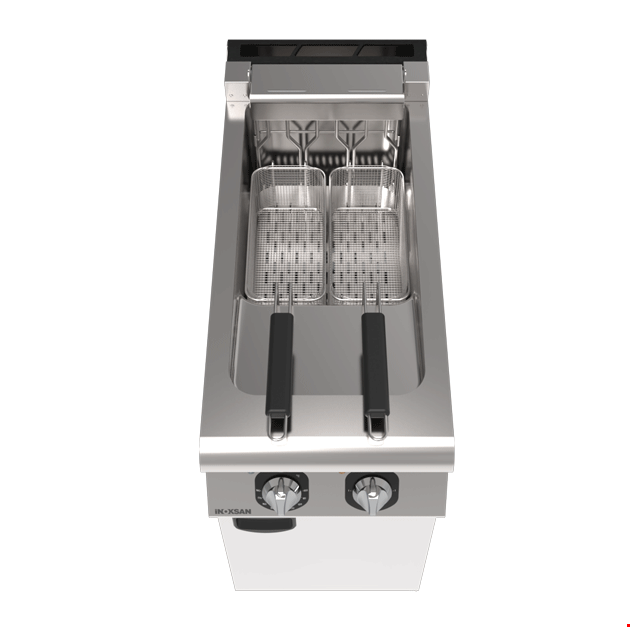

9FE 20-S STANDART FRYER Moduler Cooking

GENERAL SPECIFICATION

* Fryer

* Economy 900series, 1/2module, with cabinet

* Signle tank, 2 baskets

* Device trunk 18/8 Cr-Ni from stainless steel stone sheet,

* Baskets, are covered with wire suitable for frying and tin suitable for health conditions. The stem is protected against heating,

*Resistors, are removable for ease of cleaning and maintenance and are able to emit heat homogeneously,

* Main control switch to provide energy input to the device or cut off the input energy,

* Heat control between 100 - 190 C with thermostat,,

* All electrical control and control equipment complies with international standards,

* Limit safety thermostat to automatically cut off electrical input in case of any danger to the device,

* The ends of the thermostats that come into contact with oil are made of Cr-Ni,

* 3/4" ball valve at the bottom for draining the oil from the reservoir,

* Produced with a door cabinet as standard. The cabinet is made of stainless steel. Cabinet doors are with plastic handles,

* For multi-purpose use, a doorless cabinet can be placed under the device instead of a cabinet with a door or it can be mounted on a suitable carcass for middle group applications,

* Stainless adjustable tube legs, carrier sheets 2mm aluminized sheet.

TECHNICAL SPECIFICATION

Total Power	16,5	kW
Electrical Inlet	380/400	V
Oil Capacity	26	Lt.
Potato Capacity	20	Kg/h
Cable Cross Section	5x4	mm²
Box dimensions with Pallet	422x937x1006	GxDxY

Compare

General features
Width	40 cm
Depth	92 cm
Height	92 cm
Pallet box dimensions	422x937x1006 mm

Functional Features

Technicial Specifications
Electric Input	380/400 V
Total power	16,5 kW
Max. Electric power	16,5 kW
Frequency	50-60 Hz
Cable cross section	5x4 mm²
