Product Detail

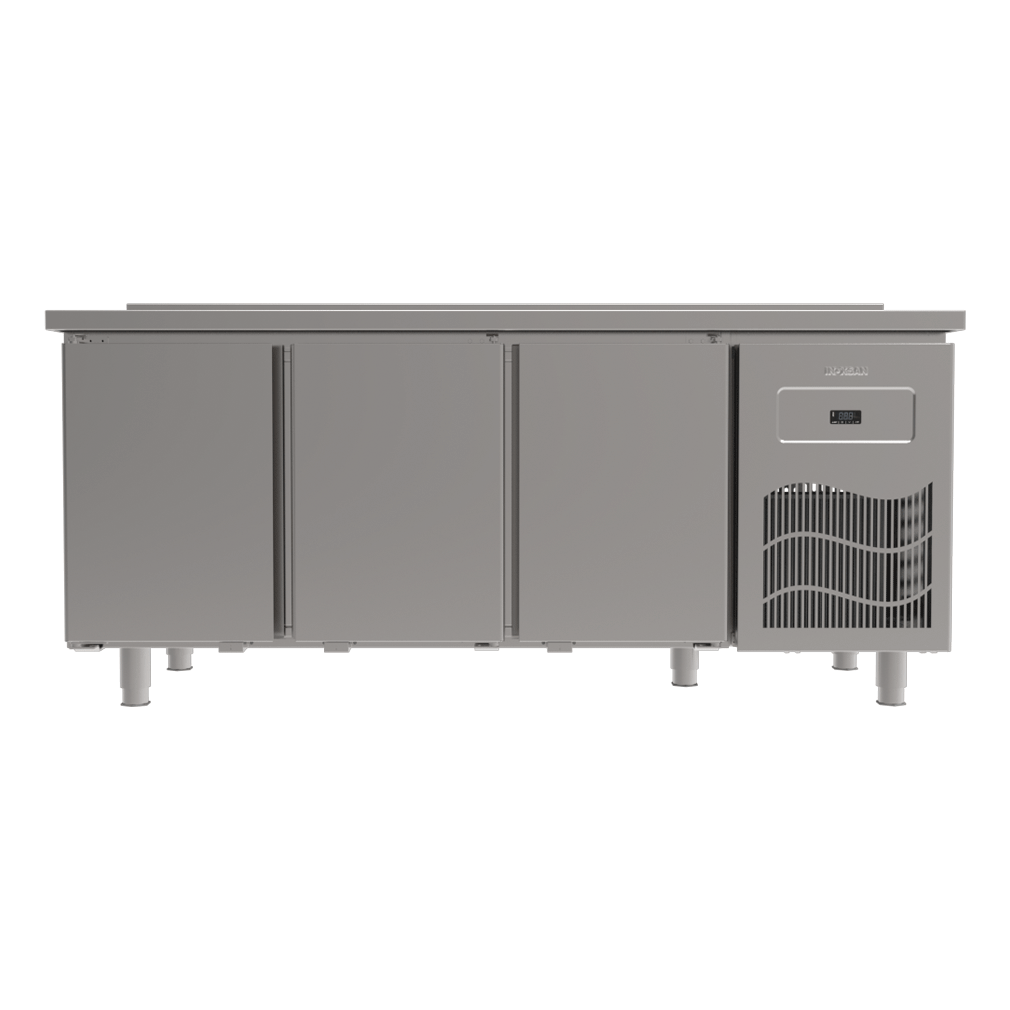

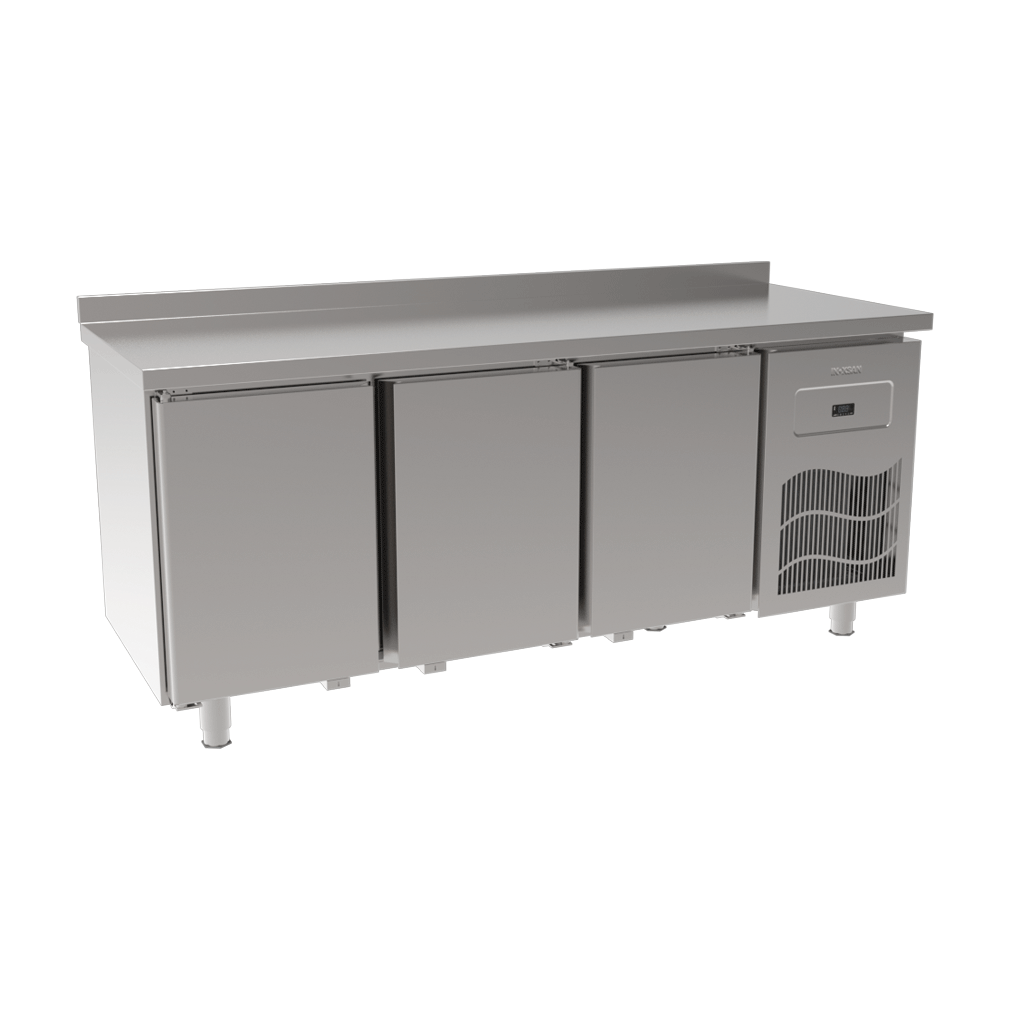

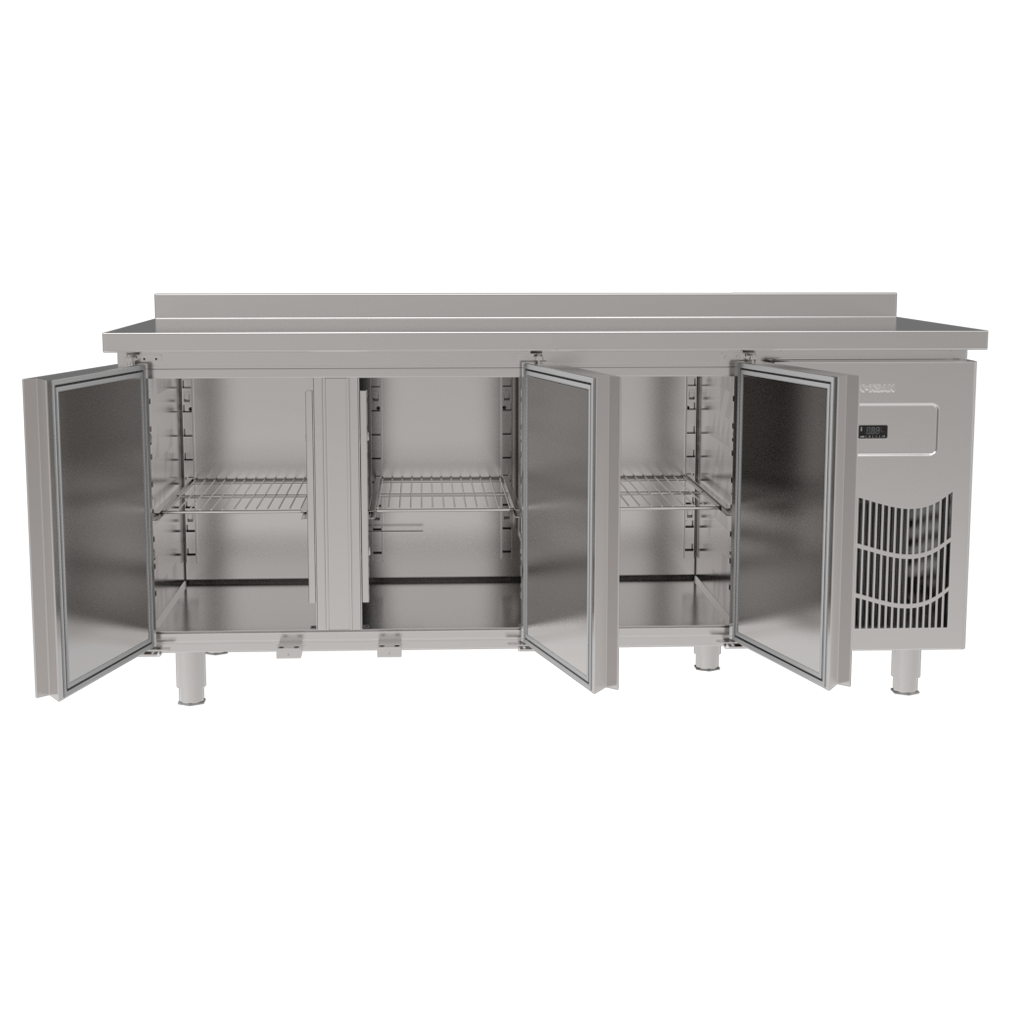

SBN190 BENCH TYPE COOLER WITH 3 DOORS Premium Serie Cooling Equipments
GENERAL SPECIFICATIONS
* 50mm thicknes (doors 55mm) body, HFCF Free polyurethane, 45kg/m'3 density
* -2 / +8 °C temperature
* With fan blown evaporator cooling system
* With fan cooler and grill ventilated engine block group
* Adjustable heightness and PVC coated shelf
* Automatic water evaporation during defrosting
*The visible and product touching surfaces are stainless steel
* Rear sheets GALVANIZ
* 3 shelves
* Stainless adjustable feet
* Spring loaded hinge system 120-135 degree
* Digital thermostat with double sensor
* Condenser cleaning alarm, high and low temperature alarm, HACCP compliance
* Magnetic and removable door seals
* Drawer system with 1/2 , 1/1 optional, 600mm drawers deepth 1/1GN with optional container
TECHINICAL SPECIFICATIONS
|
Working ambient |
43 C |
Degree |
|
Cooling gas |
R134A |
|
|
Max energy |
0,30 |
kW |
|
Freq. |
50-60 |
Hz |
|
Electrical inlet |
230 |
V |
|
Weight |
157 |
Kg |
|
Cooling |
430 |
Lt |
|
Wheeled foot |
Optional |
|
|
Extra wire shelf |
Optional |
|
|
Door lock |
Optional |
|
