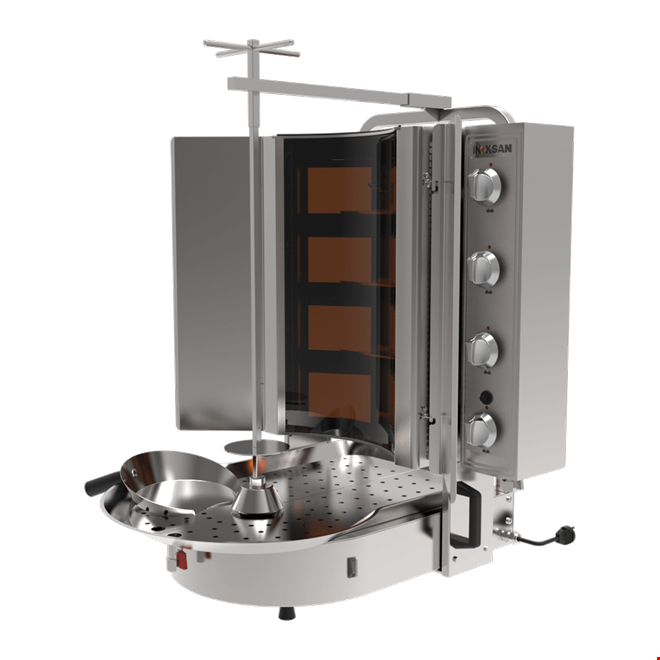

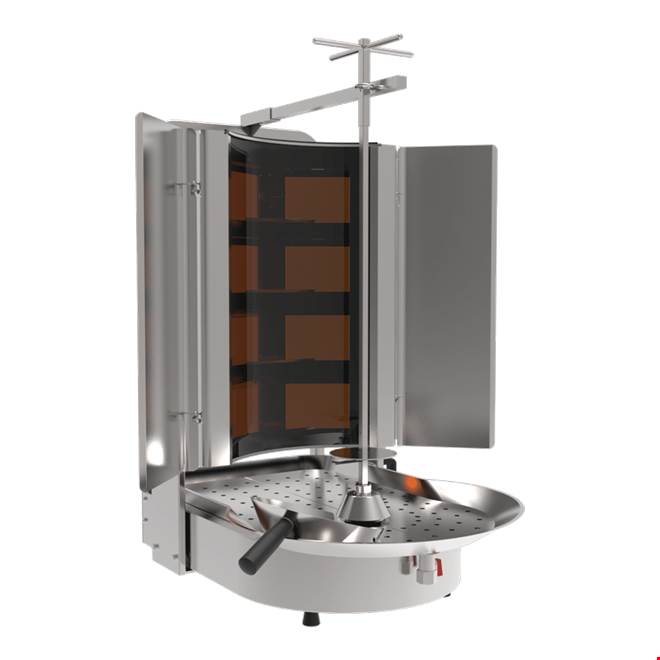

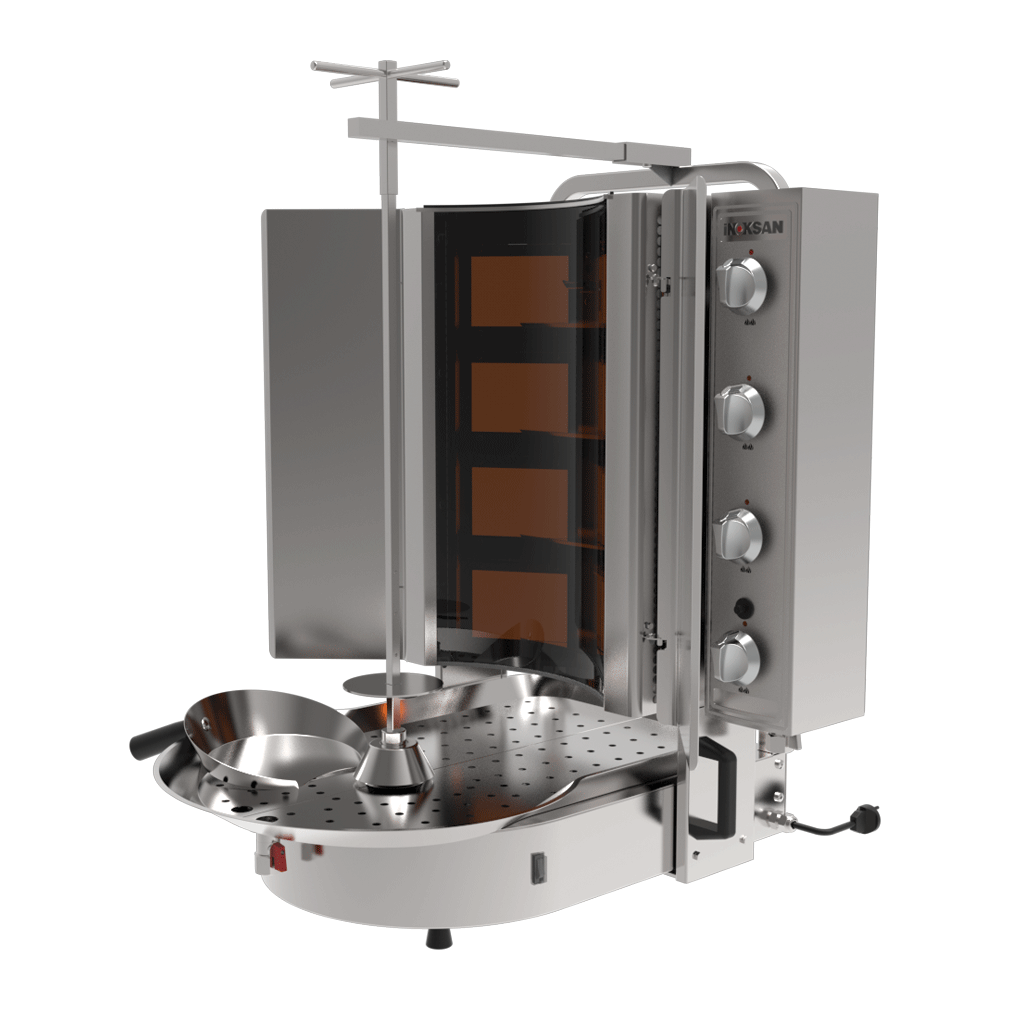

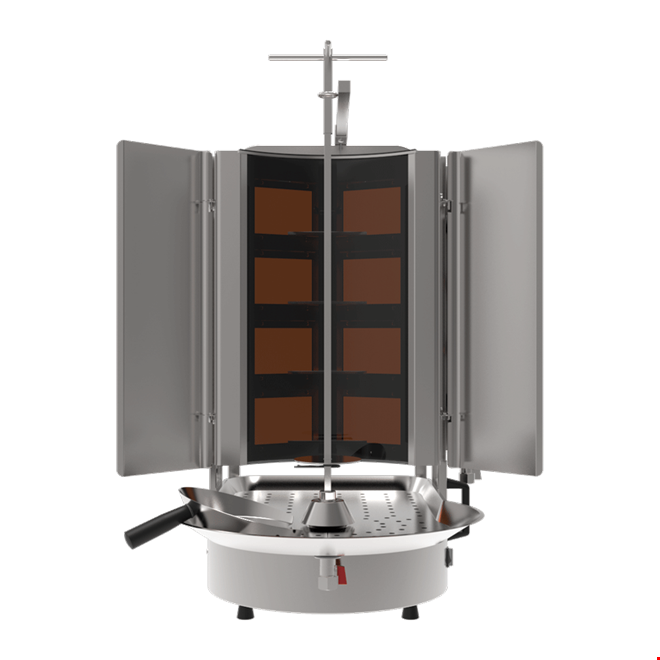

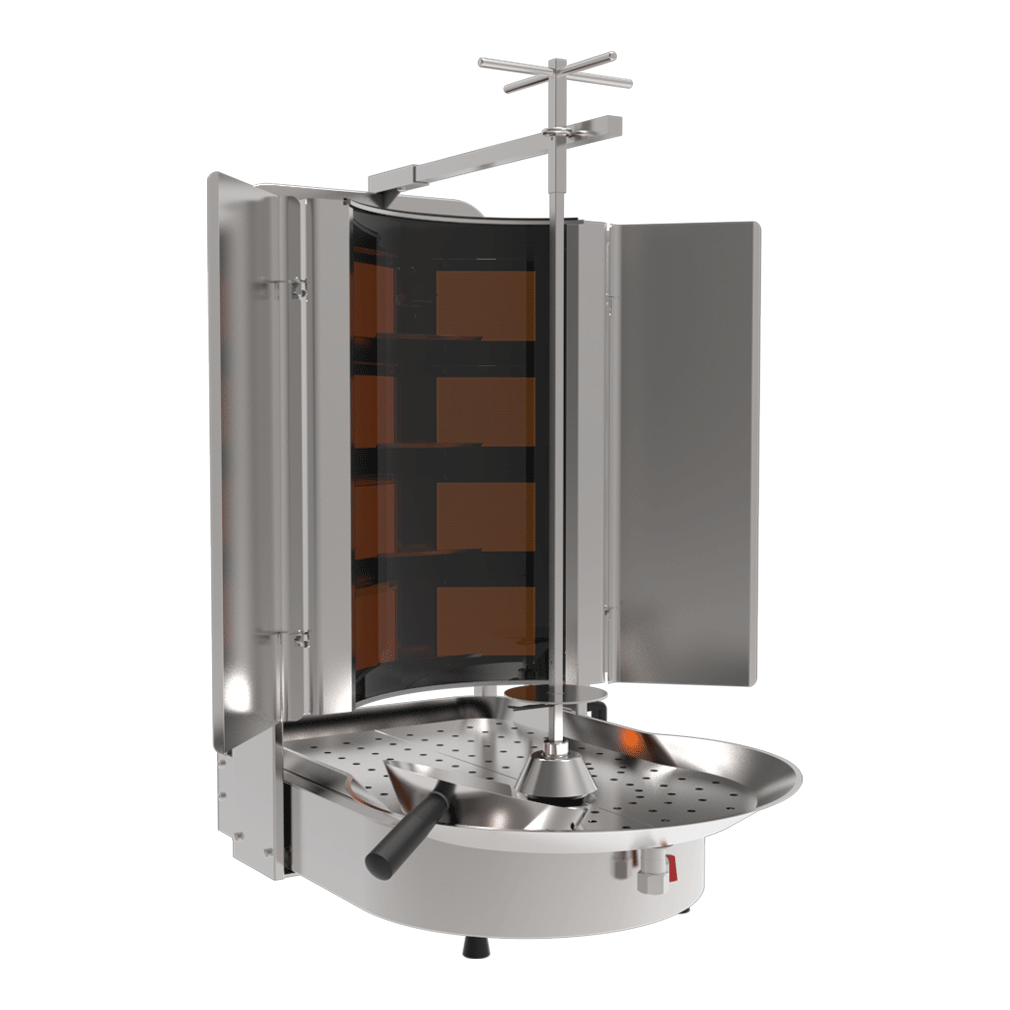

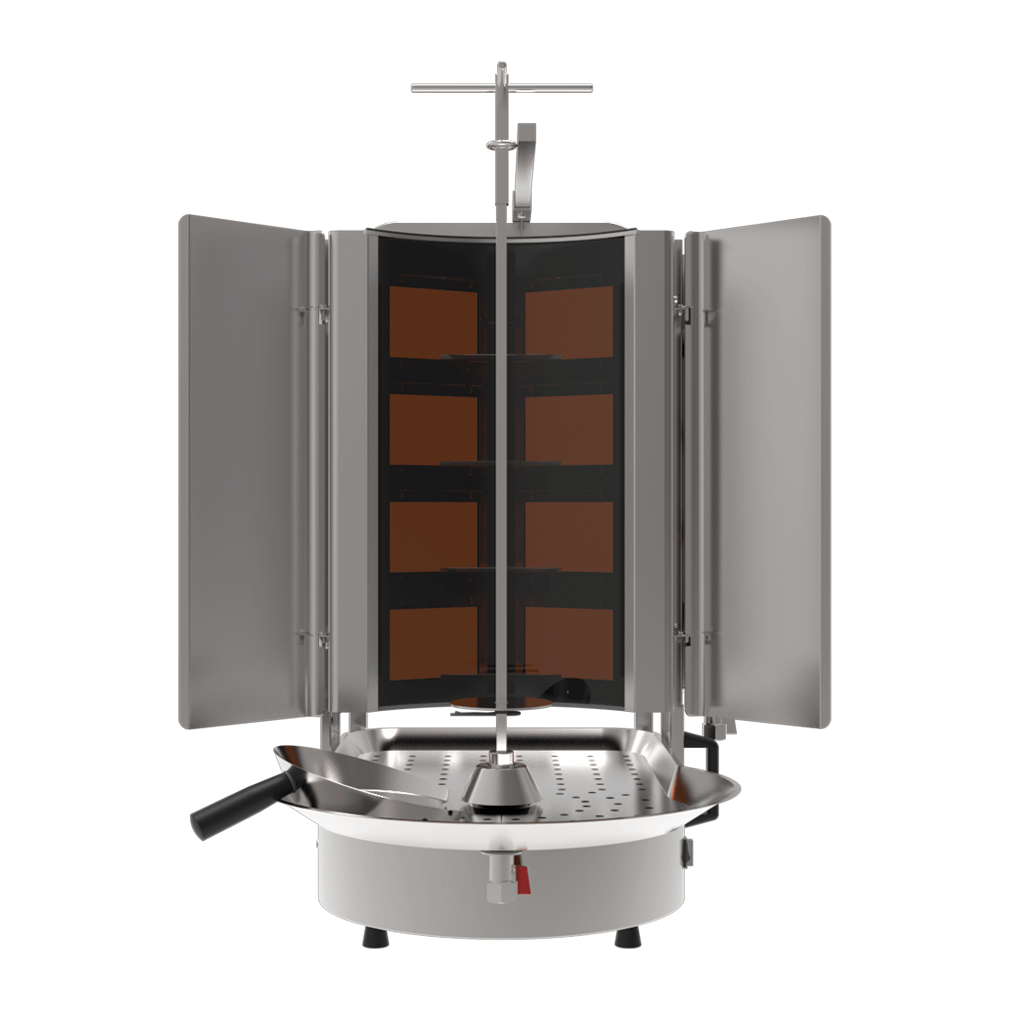

PDG 400 - Doner Kebab Machine Worktop Units

GENERAL FEATURES
* Option of rotating the skewer to the left or right,
* Knob will operate main radiant with full flame in
position 1, main and auxiliary radiants with full flame in
position 2 and both radiants in half flame in position 3..
* All outer surfaces except the ones in contact with meat
made of AISI 430 SB steel.
* Rotary skewers capable of operating in inclined
position.
* Capable of operating under different gas pressures.
* Shovel included in the equipment.
* Oil leakage into the motor prevented by coating
designed specially.
* Rotating the skewer manually in case of power failure ,
* Possibility of movable top body,
* Adjustable feet,,
* Independent control of the motor from the equipment,

TECHNICAL SPECIFICATIONS

Total Gas Power	16	Kw
Gas Inlet	1/2	Inc
Gas Pressure	20	mbar
Capacity of Doner Kebab Machine	60-75	Kg
Motor Power Inlet	220-230V AC 50-60Hz	V - Hz.
Motor Power	8	Ad.
Net Weight	53	Kg
Skewer Length	577	mm

Compare

General features
Width	48 cm
Depth	77 cm
Height	100 cm
Device capacity	60-75 Kg
Gross weight	53 Kg
Net weight	53 Kg

Functional Features
Cooking capacity	60-75 Kg
Doner Capacity	60-75 Kg
Skewer Length	577 mm

Technicial Specifications
Electric Input	220-230V AC
Gas Inlet	1/2 "
Total power	16 Kw
Max Throttle Power	16 Kw
Frequency	50-60 Hz
Nominal Gas Pressure (NG)(G20)	20 mbar
radian number	4 adet
